Description
The VIY5-300 Ground Penetrating Radar (GPR) is used for location and analysis of the nature of underground objects using electromagnetic pulse radiation, up to 8 meters depth. The VIY5-300 GPR is suitable for searching of both metal and dielectric objects (geological structures, pipes, voids, building constructions etc.).
Basic Applications:
Search for pipes and communication objects;
Examination of engineering construction (building basement, dams, etc.);
Investigation of man-caused accident areas;
Search for subsurface objects (voids, cracks, heterogeneous inclusions
Search for underground constructions (tunnels, sewers and etc.);
Search for sources of leakage from pipelines by indirect signs (excessive moisture).
Features:
Real time signal pre-processing (Online filtering)
Automatic-Calibrated online filters
Wide range of post processing filters
Increased dynamic range due to digital traces-stacking
High signal-to-noise ration due to innovative Telbin technology
Automatic recognition of connected antenna
Antenna to laptop connection through WiFi or USB
All GPR components (antennas system, electronic modules, battery, etc.) are assembled in a single case
No additional Control Unit. Any Windows-based computer (laptop) can be used for working
Direct connecting of Measuring wheel and GPS to antenna unit
Antenna unit can be either mounted on the Handcart Cart-46 or towed along the ground by transport bel
Bidirectional odometer. User can perform sounding in both directions: back and forth
Low power consumption: not less than 8 hours of working session before next charging
Sealed lead acid batteries permitted for air-carrying
Non- inflatable solid wheels of the Handcart
Durable antenna body made of fiberglass plastic
Replaceable bottom protector to use antenna without the Handcart
Each antenna set is ready to use without purchasing any additional accessories

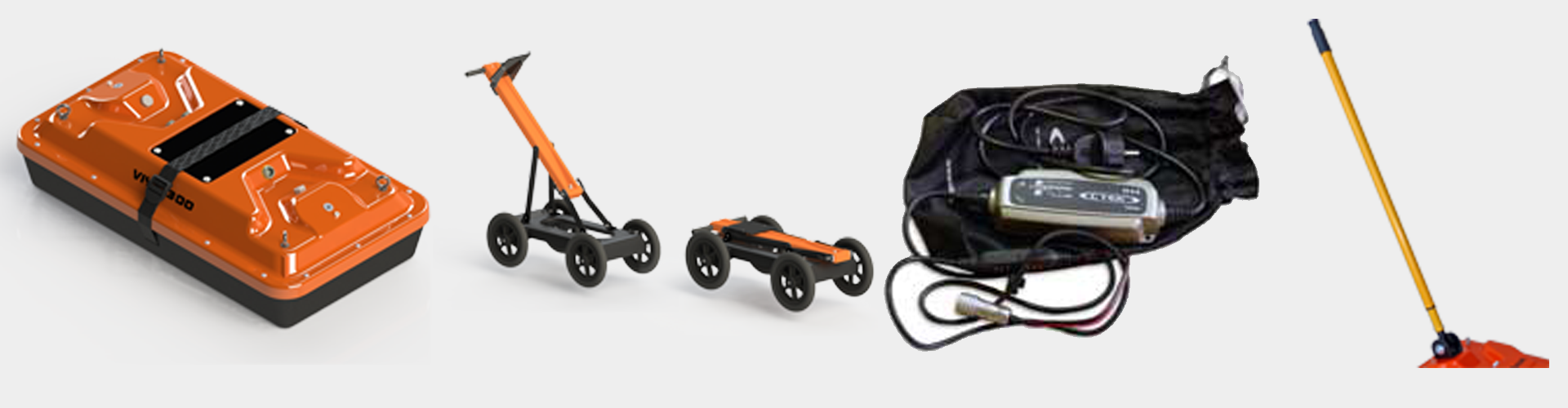

The VIY5-300 GPR set includes:
Antenna Unit
Antenna unit is placed in a durable fiberglass housing with build in battery.
The antenna unit has sockets to connect:
Data cable
Masuring wheel and/or GPS receiver
Handcart Cart-46
Foldable handcart allows a single operator to carry out fast and easy survey of large areas.
Main features:
Durable and reliable construction
Quick deployment
12 inch wheels
Weight - 12.7 kg (with battery installed)
Built-in odometer
Built-in battery
Very compact when folded
VO-22 Measuring Wheel
VO-22 is a bidirectional odometer (measuring wheel) that measures traveled distance in both directions. Odometer can be mounted to the body of antenna unit and electrically connected to the antenna by special connector.
Calibration is not required;
Dust and mud protection;
Mounting to an antenna unit without any extra tool;
Battery Charger
Reliable, sealed charger for charging a built-in battery.
Data Cable
The cable that connects antenna unit to USB port of your computer
GPR Pole
The pole for transportation of antenna forward and backward. Can be easily mounted to antenna.
